Tempo Semiconductor TSDP11xx / TSDP10xx Headphone Amplifiers

Tempo Semiconductor TSDP11xx / TSDP10xx Headphone Amplifiers are class-H capless DirectConnect™ technology amplifiers featuring 2V_rms ultra-low-power. These amplifiers provide independent left/right channel volume control, mute, and fine parameter adjustment via the two-wire I²C compatible serial interface. The TSDP11xx / TSDP10xx headphone amplifiers eliminate large output DC blocking capacitors, reduce board area, and reduce component height and cost. These amplifiers enable full bass response without attenuation, offer no pop on start-up or power-down, and charge-pump allows for true ground-centered outputs.

The Tempo Semiconductor TSDP11xx / TSDP10xx amplifiers offer <1μA shutdown supply current, <1μA shutdown input leakage current, and 230mA headphone output current. These amplifiers operate at 2.5V to 5.5V power supply voltage range and -40°C to 85°C industrial temperature range. Typical applications include gaming-class motherboards, tablet computers, gaming-class laptops, portable gaming platforms, digital audio streaming/connected audio accessories, and remote controls/gaming controllers with headphone jacks.

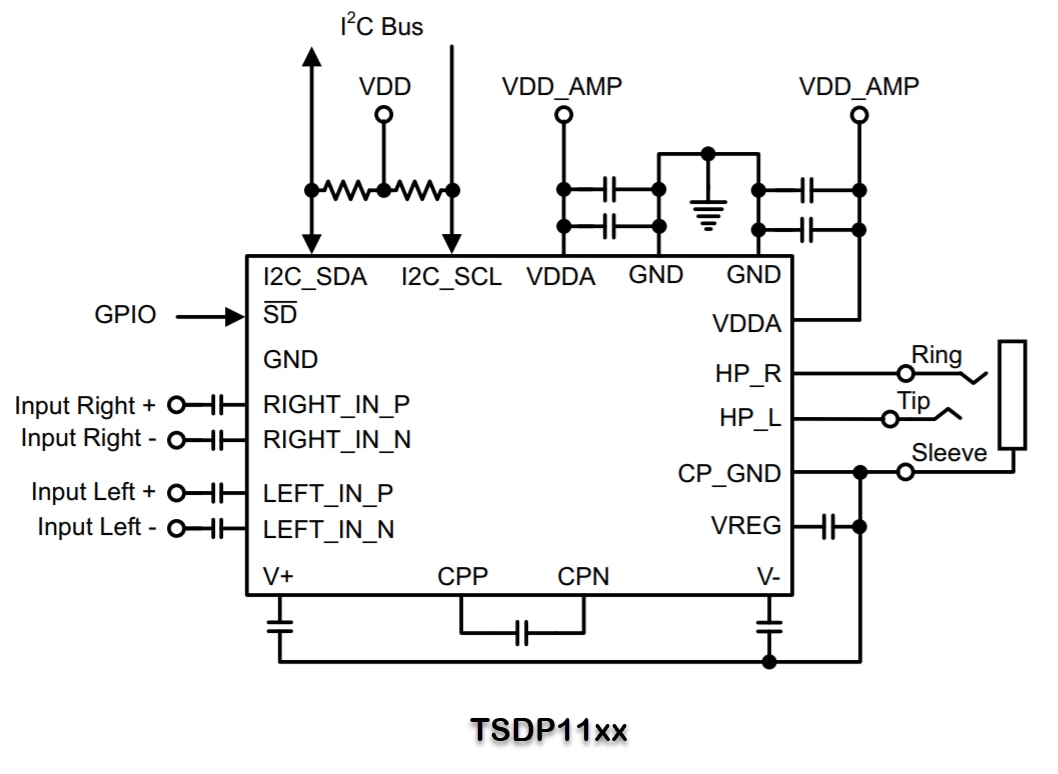

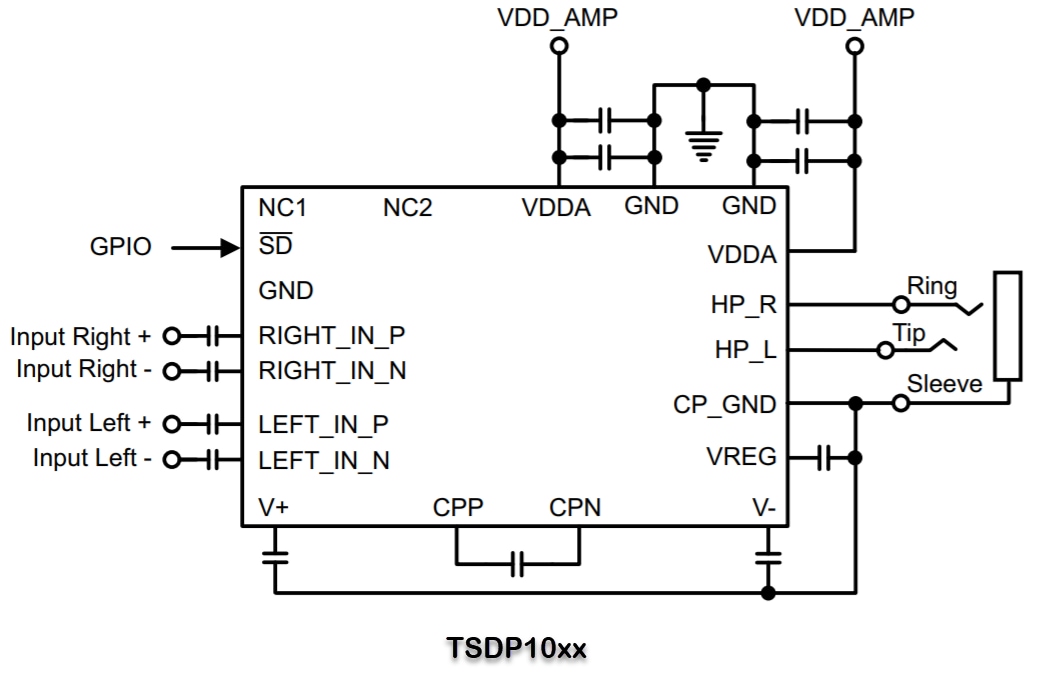

Features

Class-H capless DirectConnect technology
Eliminates large output DC-blocking capacitors
Reduces board area
Reduces component height and cost
Enables full bass response without attenuation

Offers no pop on start-up or power-down
Charge-pump allows for true ground-centered outputs
Optional register-controlled high-impedance outputs when disabled
GPIO control for hardware shutdown

Specifications

-40°C to 85°C industrial temperature range
-65°C to 150°C storage temperature range
230mA headphone output current
2.5V to 5.5V power supply voltage range

150°C junction temperature
<1μA shutdown supply current
<1μA shutdown input leakage current

Applications

Gaming-class motherboards
Tablet computers
Gaming-class laptops
Portable gaming platforms
Digital audio streaming/connected audio accessories
Bluetooth™ enabled headphones/headsets/docking stations/adapters
Wi-Fi® enabled headphones/headsets
Lightning-enabled headphones/headsets/docking stations/adapters

Thunderbolt^® I/II/III-enabled headphones/headsets/docking stations/connectivity expansion hubs/adapters
HDMI™ enabled VR/AR/MR headphones and headsets
MHL™ enabled VR/AR/MR headphones and headsets
USB 1.1/2.0/3.0/3.1 gen 1/3.1 gen 2/USB-C-enabled headphones/headsets/docking stations/connectivity expansion hubs/tablets/mobile phones/tablet and mobile phone cases/portable projectors
Remote controls/gaming controllers with headphone jacks
